ด้านนึงเสียบเข้าสาย Fiber N-Type อีกด้านเสียบสายนำสัญญาณ
ติดตั้งแล้วแนะนำให้ใช้ Tape ละลาย 3 M ดึงให้ยืดเล็กน้อยแล้วพันให้รอบจากด้านล่างขึ้นด้านบน

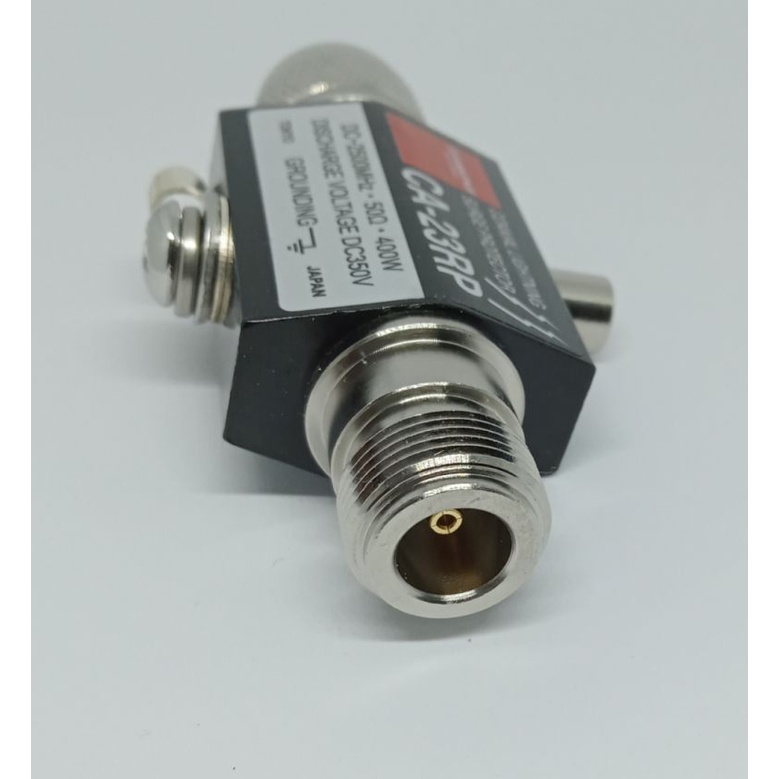

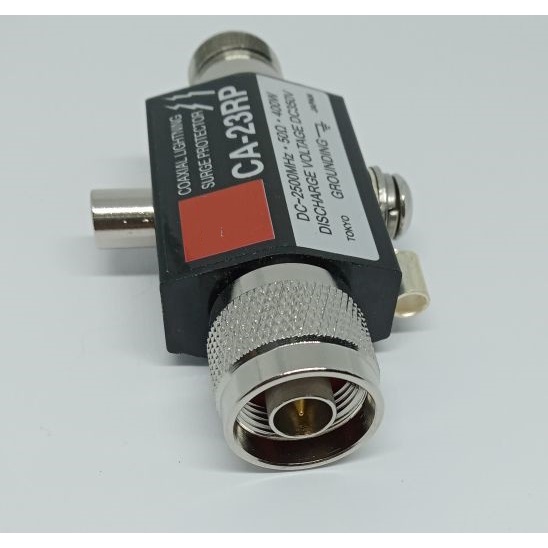

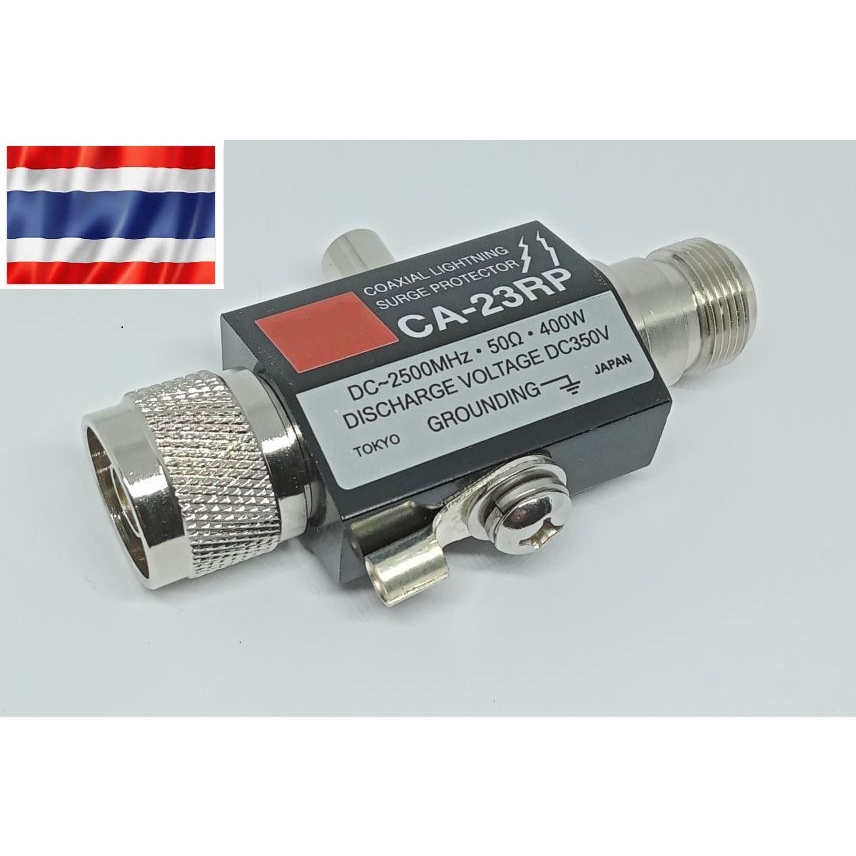

N Male Plug to N Female Coaxial 0-2.5GHZ 400W CA-23RP 50ohm DC-2500MHz
The surge protector is a coaxial lightning arrestor,
which is made of high-quality materials.
This product is specially designed to absorb the surge of lightning strikes
on an antenna at the top of a building and ground, to better protect transceivers,
receivers, etc.
Features:
Coaxial Lightning Surge Protector – Full-band lightning protection( DC-2500MHz).
Adopts 1/4 wavelength short circuit principle to achieve lightning protection.
Made of high-quality ABS and metal, strong and durable.
Delicate lightning arrestor to better protect transceivers, receivers, etc.
Easy to install and use.
Specification:
Type: Lightning Surge Protector
Frequency range: DC-2500MHz
Impedance: 50Ω
Connector type: N-head (J-K)
Standing wave coefficient: ≤ 1.1
Peak power: 400W
Flow capacity: 50KA
Insertion loss: ≤0.2dB
Interface: N Male to N Female
Material: Metal + ABS
Weight: Approx. 115g / 4.1oz
Size: Approx. 8 * 4.5 * 2cm / 3.1 * 1.8 * 0.8in

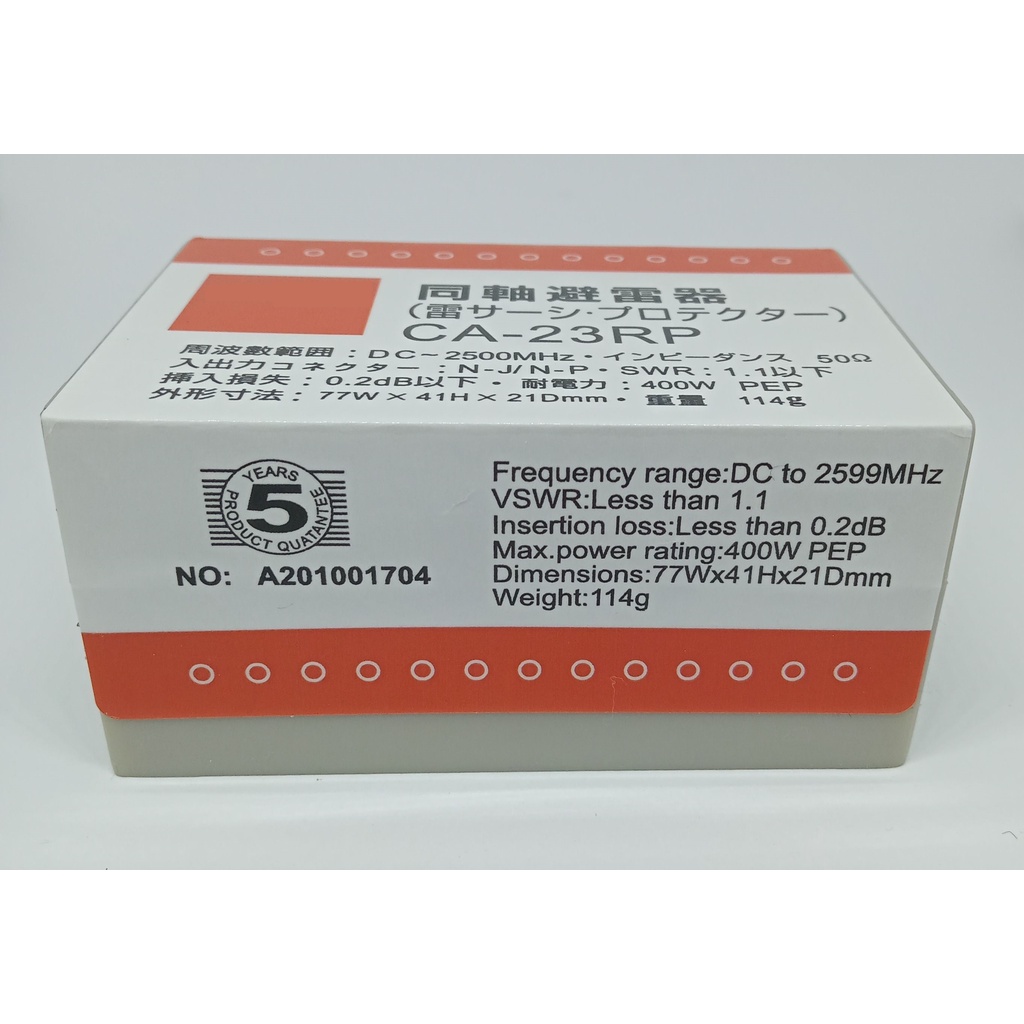

Package list:
1 * Lightning Surge Protector
