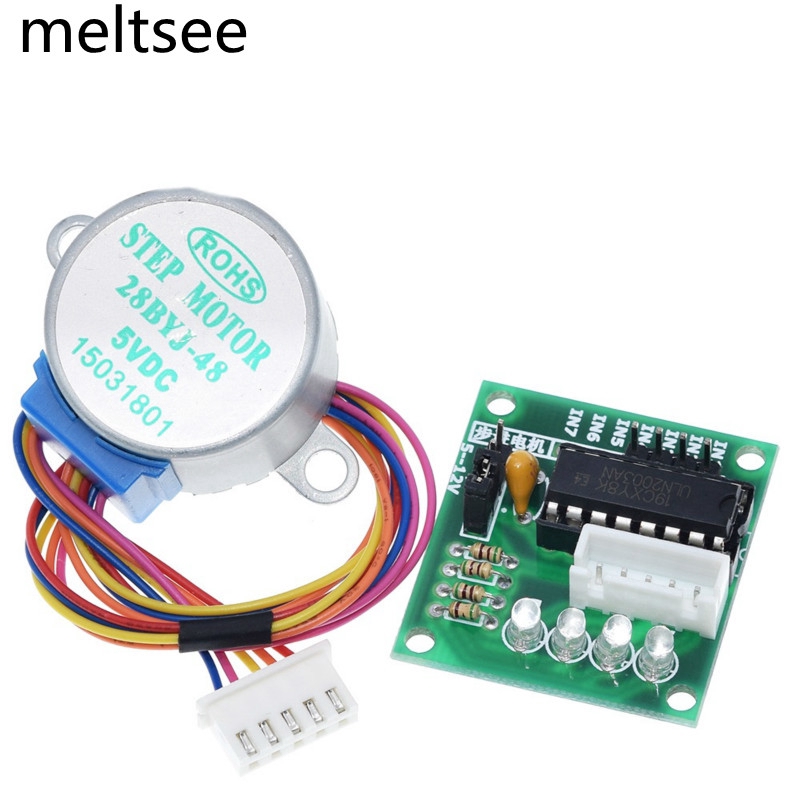

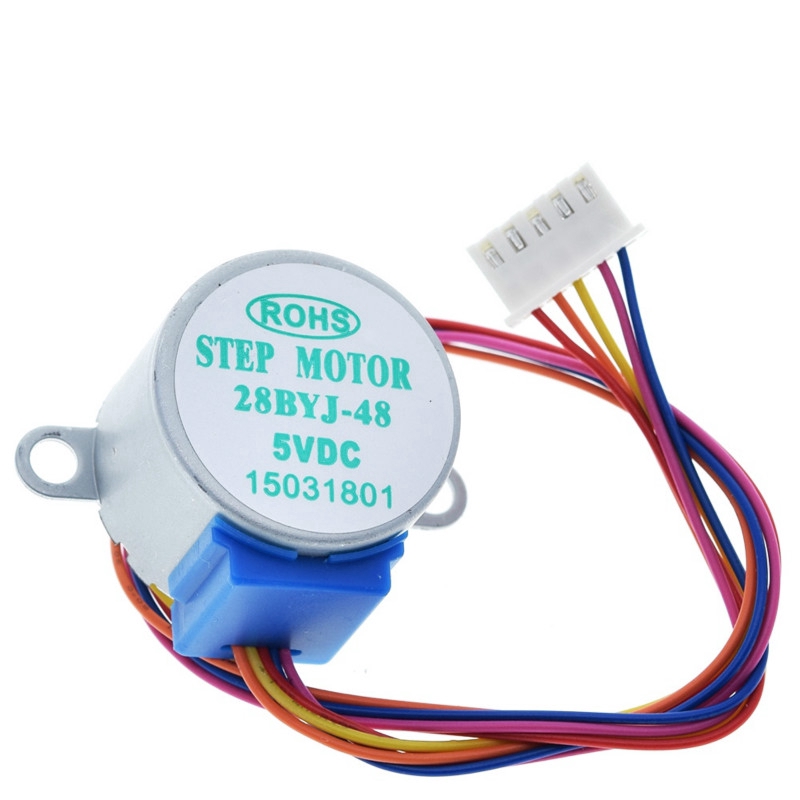

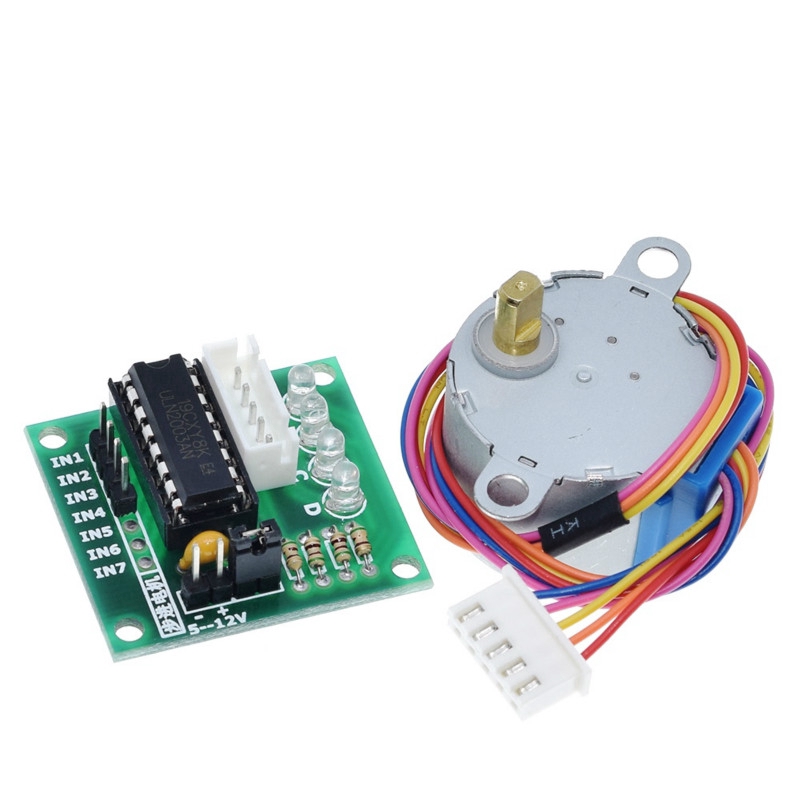

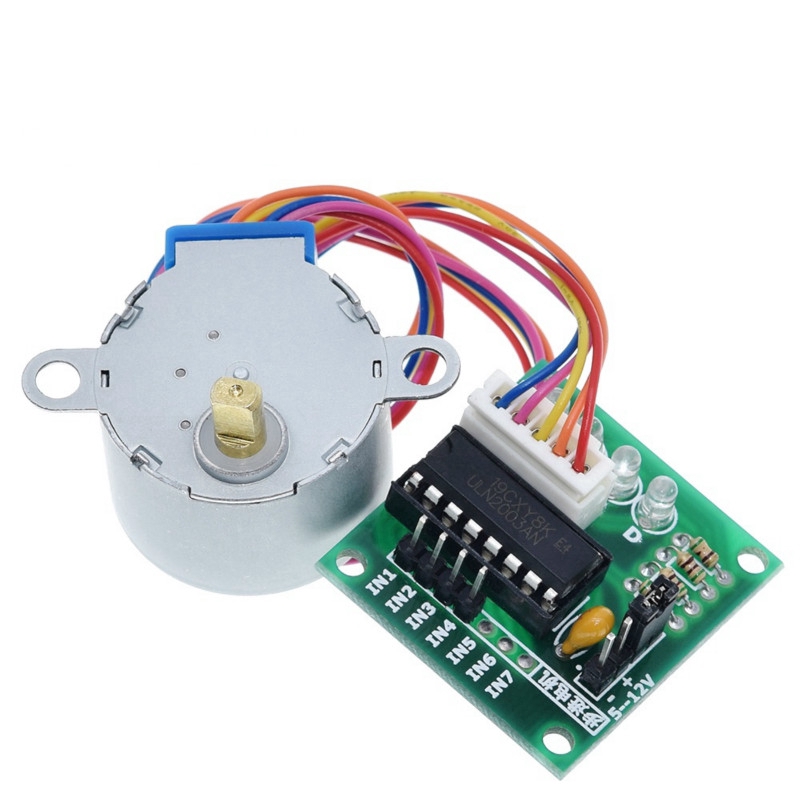

28BYJ-48-5V 4 phase Stepper Motor + Driver Board ULN2003 for Arduino
Description：
Rated Voltage: DC5V
4-phase
Reduction Ratio: 1/64
Step Torque Angle: 5.625/64
DC Resistance: 200±7% (25)
Insulation Resistance: >10M (500V)
Dielectric Strength: 600V AC / 1mA / 1s
Insulation Grade: A
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m(120Hz)
Detent Torque: >34.3mN.m

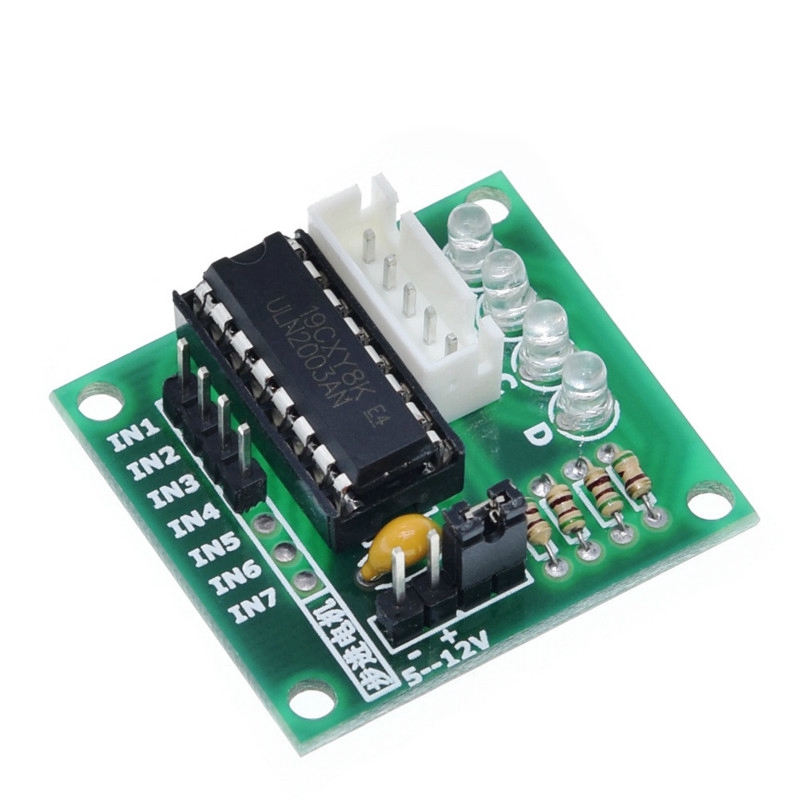

Temperature Rise: <40K(120Hz) Noise: <40dB (120Hz, No load, 10cm) 5 Line 4 phase can be driven by ordinary uln2003 chip can also be connected in phase 2 development board used for. supporting the use of a direct plug and easy to use stepper motor used in the development board. Stepper motor driver board ULN2003 A, B, C, D four-phase LED indicates the status of the stepper motor work Stepper motor with a standard interface, when used directly pluggable Package Included: 1pcs X ULN2003 Driver board 1pcs X Stepper motor Before purchase: 1. All the goods are in stock and we will dispatch immediately if we receive the order. 2.Please read the item description, if you have any question, do not hesitate to contact us. Shipment： 1.1-2 days to ship(except for the pro-order item) After purchase: 1.If you are satisfied，please give us 5 stars praise. 2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. if you receive a defect item,please contact us at once with item picture or video #1set #28BYJ-48-5V #4 #phase #Stepper #Motor + #Driver #Board #ULN2003 #for #Arduino #1 #x #Stepper #motor #+ #1x #ULN2003 #Driver# board
