About this product

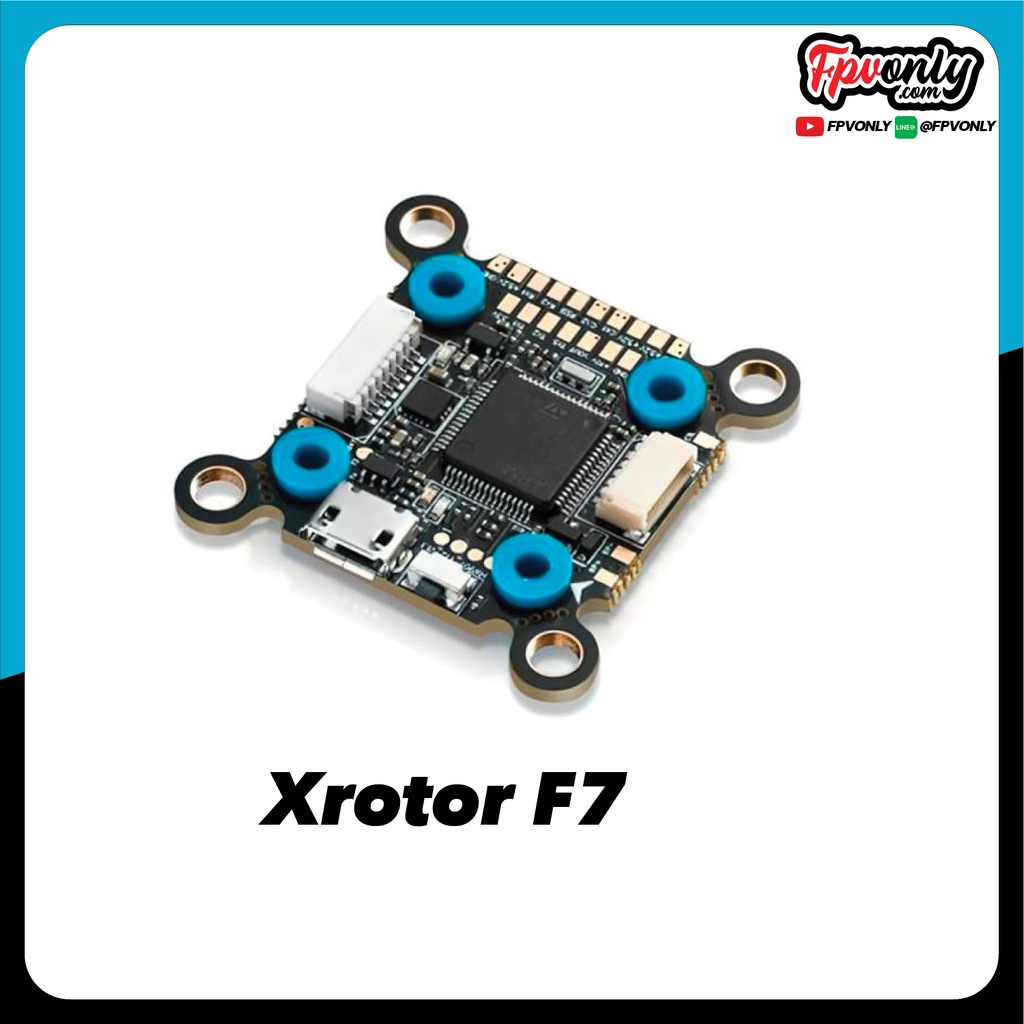

The XRotor F7 Convertible Flight Controller from Hobbywing continues to impress with its latest iteration. This new FC is similar to other versions with its OSD, and voltage monitoring, but the F7 now comes with an all-new 5V 12V dual BEC Circuit and a special interface for the DJI image transmission system. The mounting pattern is convertible between 20×20 and 30.5×30.5!
Make your electronics work for you, not the other way around!
Features
– Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor.
– Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
– DJI image transmission system port equipped with corresponding flat cable
– Supports bidirectional DShot digital throttle communication.

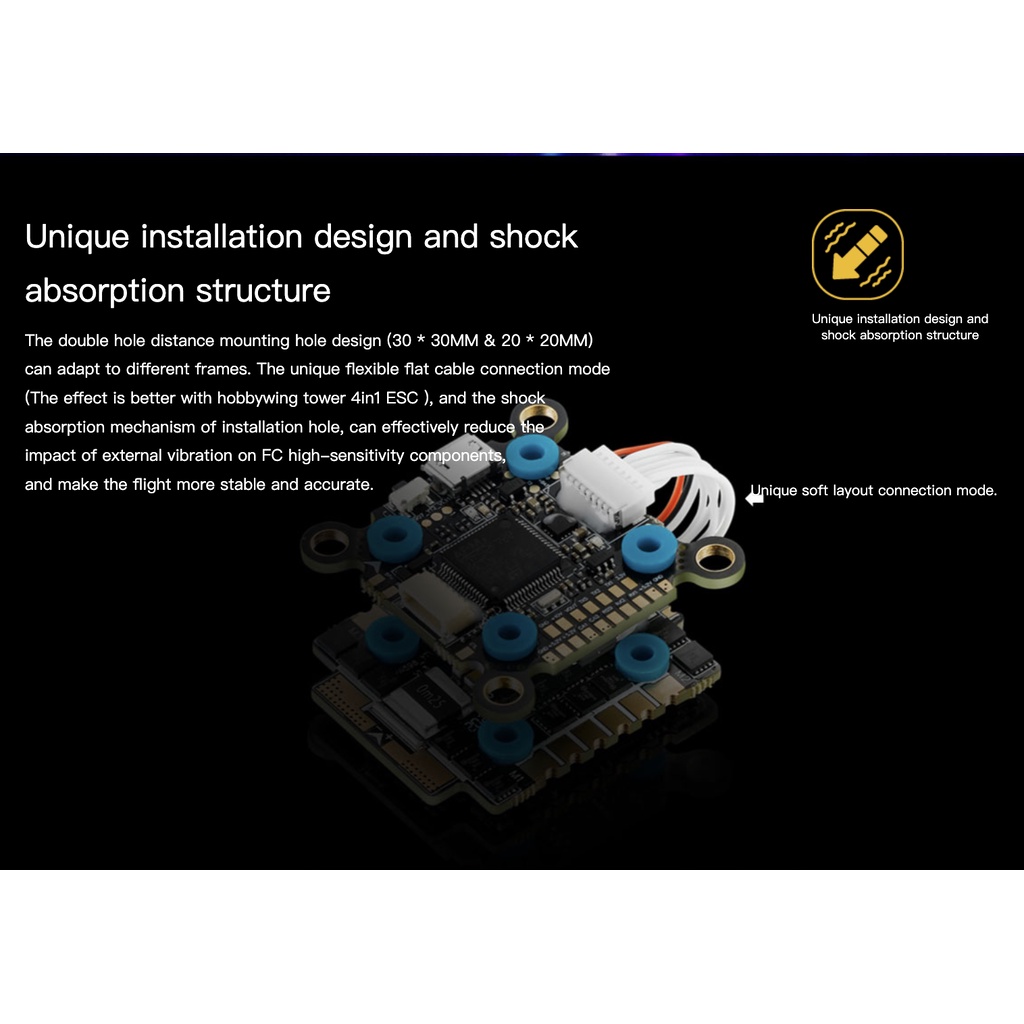

– Unique installation design and shock absorption structure.
– On-board large capacity Flash memory chip.
– On-board 5V 12V dual BEC circuit.

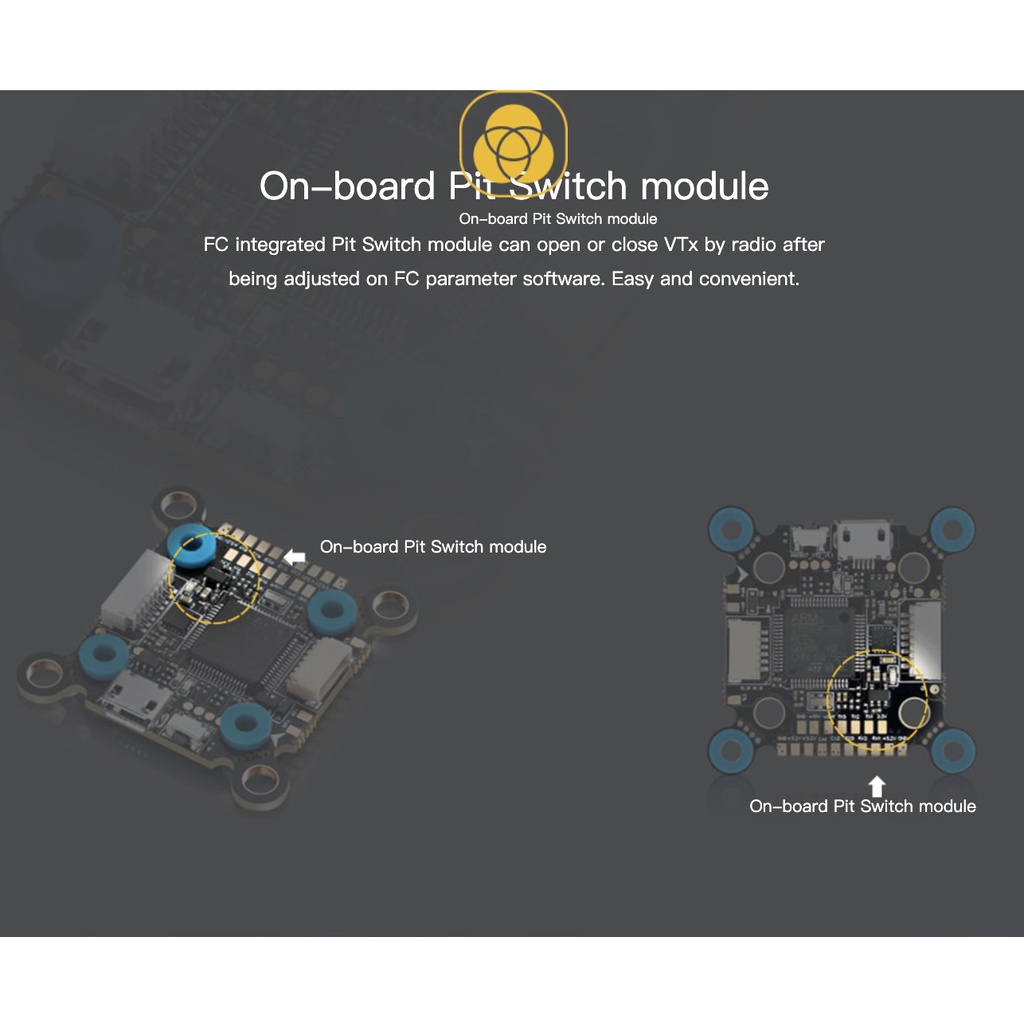

– On-board Pit Switch module.
Specifications
– Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
– Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
– Mounting Holes: Convertible 20x20mm / 30.5×30.5mm
– Programming via: Betaflight/Cleanflight-configurator
– Firmware: HOBBYWING_XROTORF7CONV
– Voltage Monitoring: Supported
– Current Monitoring: Supported
– FC Programming: Supported
– External Buzzer: Supported
– BEC: [email protected]: [email protected]
– LED Control: Supported
– USB Port: MicroUSB
– Size: 32x32mm
– OSD: Built-in
– Weight: 3.3g
–
—————————————
Product Name
Product Number
Specifications Cont./Peak Current
Input Voltage
BEC output
Wires Connectors Input Wires
Output Wires
Input Connectors
Output Connectors
Size Weight Size
Weight
Features Firmware
ESC Programming
Stick Programming
DEO
Throttle Range Calibration
Oneshot125 Mode
Oneshot42 Mode
MultiShot Mode
DShot150/300/600/1200
Timing
Motor Rotation
Applications

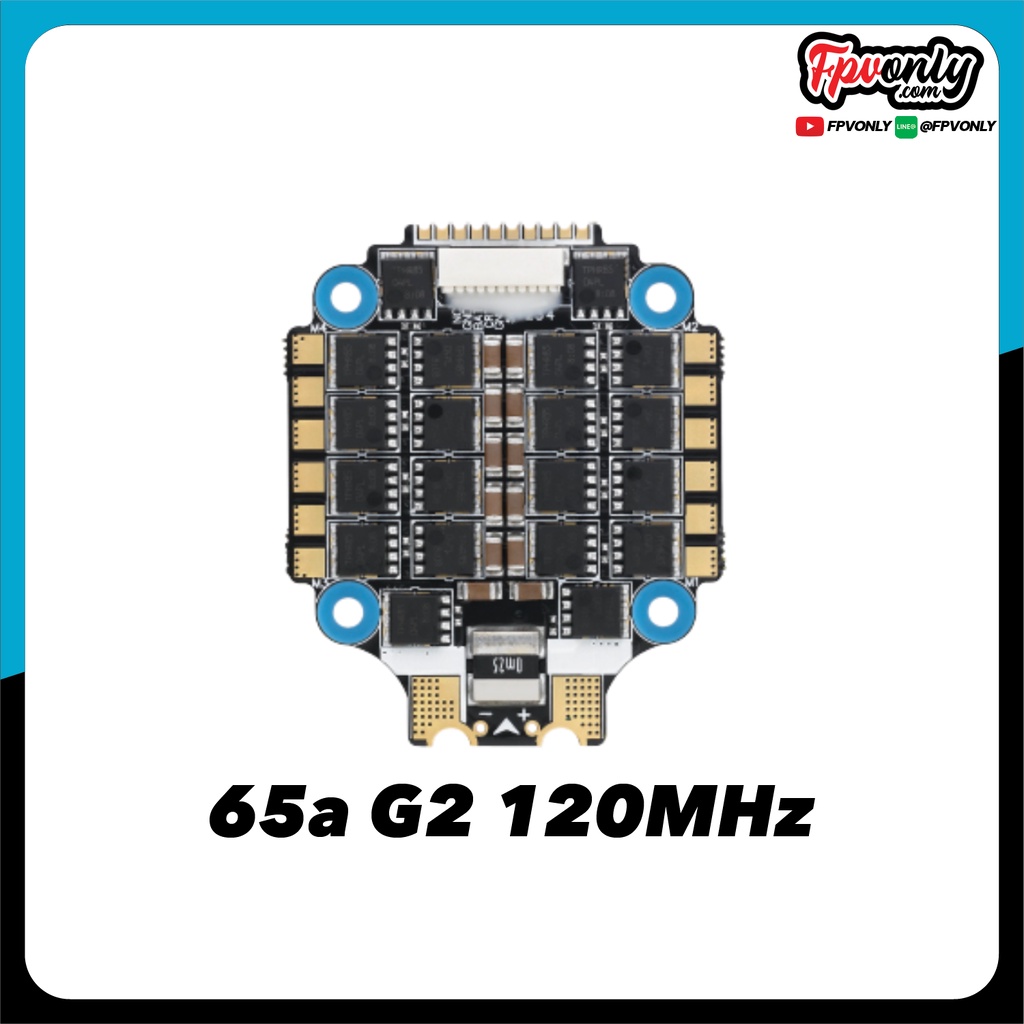

Product Name XRotor FPV G2 65A 4in1 ESC
Product Number 30902064
Specifications Cont./Peak Current
Input Voltage
BEC output 65Ax4/ 80Ax4
3-6S Lipo
5V 0.6A
Wires Connectors Input Wires
Output Wires
Input Connectors
Output Connectors Red-12AWG-130mm/ Black-12AWG-130mm
No wires but solder tabs
XT60(w/ Wires Soldered on)
No
Size Weight Size
Weight 52x42x6.6mm
15g
Features Firmware
ESC Programming
Stick Programming
DEO
Throttle Range Calibration
Oneshot125 Mode
Oneshot42 Mode
MultiShot Mode
DShot150/300/600/1200
Timing
Motor Rotation Hobbywing_XRotor_BLHeli_32_AT421 Firmware
BLHeliSuite32
Supported
Supported
Supported
Supported
Supported
Supported
Supported
Supported
Supported
Applications 130-300mm FPVs
——————————————————-
Product Name
Product Number
Specifications Cont./Peak Current
Input Voltage
BEC output
Wires Connectors Input Wires
Output Wires
Input Connectors
Output Connectors
Size Weight Size
Weight
Features Firmware
ESC Programming
Programming tool
DEO
Throttle Range Calibration
Oneshot125 Mode
Oneshot42 Mode
MultiShot Mode
DShot150/300/600/1200
Timing
Motor Rotation
Applications

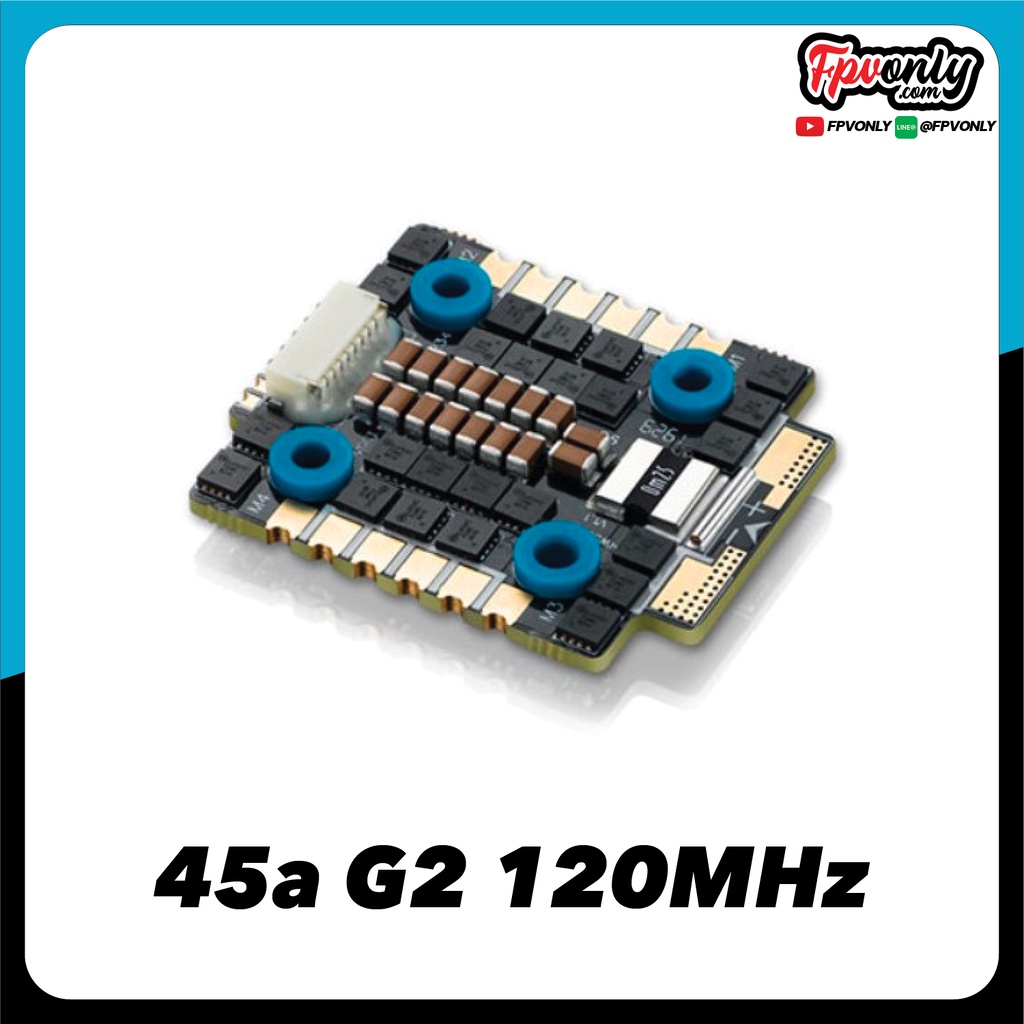

Product Name XRotor FPV G2 45A 4in1 ESC
Product Number 30902065
Specifications Cont./Peak Current
Input Voltage
BEC output 45Ax4/60Ax4
3-6S Lipo
NO
Wires Connectors Input Wires
Output Wires
Input Connectors
Output Connectors Red-14AWG-100mm*1
Black-14AWG-100mm*1
No wires but solder tabs
XT60(w/ Wires Soldered on)
No
Size Weight Size
Weight 40x33x5mm
12g
Features Firmware
ESC Programming
Programming tool
DEO
Throttle Range Calibration
Oneshot125 Mode
Oneshot42 Mode
MultiShot Mode
DShot150/300/600/1200
Timing
Motor Rotation Hobbywing_XRotor_BLHeli_32_AT421
Supported
BLHeliSuite32
Supported
Supported
Supported
Supported
Supported
Supported
Supported
Supported
Applications 100-300mm100-300mm FPVs
